Vinyl Siding Overview: A Technical & Building Science Guide

The selection of residential cladding is a decision that dictates a property’s resilience against environmental stressors for decades. Among the myriad of available materials, polyvinyl chloride (PVC) remains the most prevalent choice in the North American market, yet it is arguably the most misunderstood. Often dismissed by architectural purists as a mere synthetic imitation, modern vinyl cladding has evolved into a sophisticated exterior system that balances chemical engineering with logistical efficiency. Vinyl Siding Overview. To evaluate this material correctly, one must look past the surface texture and into the physics of its installation and the chemistry of its composition.

In the contemporary landscape of 2026, the building envelope must perform under increasingly volatile weather patterns and stringent energy codes. Vinyl is no longer a monolithic product; it exists on a spectrum ranging from entry-level utility panels to high-performance, foam-backed systems designed to mitigate thermal bridging. The complexity of a successful installation lies in managing the material’s high coefficient of thermal expansion, ensuring that the “floating” system remains watertight while allowing the structure beneath to breathe.

This inquiry moves beyond the standard consumer-facing summaries to provide a technical and systemic analysis of PVC cladding. We will examine the structural implications of various profiles, the economic realities of its lifecycle, and the critical failure modes that occur when the laws of expansion and contraction are ignored. By viewing the material through the lens of building science, we can determine its true utility in a long-term property management strategy.

Understanding “vinyl siding overview”

To provide a comprehensive vinyl siding overview, one must first address the dissonance between perceived simplicity and technical reality. The primary misunderstanding among property owners is the belief that vinyl acts as a waterproof barrier. In reality, it is a “rain-screen Lite.” It is designed to shed the vast majority of bulk water, but the system inherently assumes that some moisture—whether through wind-driven rain or vapor diffusion—will bypass the panels. Therefore, the integrity of the home depends less on the plastic itself and more on the drainage plane and weather-resistive barrier (WRB) installed behind it.

Another layer of complexity involves the material’s structural behavior. Unlike fiber cement or wood, which are relatively stable, vinyl is hyper-sensitive to temperature. A twelve-foot panel can expand or contract by as much as 3/4 of an inch depending on the season. A structural overview must, therefore, prioritize the “mechanical slip” of the system. If the fasteners are driven too tightly, the material buckles; if too loosely, the wind load rating is compromised. This tension between flexibility and security is the defining characteristic of the medium.

Oversimplification in this field often leads to the dismissal of “gauge” or thickness as the only metric of quality. While a thicker gauge (e.g., .046 inches vs. .040 inches) offers better impact resistance and rigidity, the chemical stabilizers—specifically the concentration of titanium dioxide for UV protection—are equally critical. A thick panel with poor UV stabilization will become brittle and fail just as quickly as a thin one. Thus, a professional evaluation must account for both the physical dimensions and the underlying polymer chemistry.

Historical Evolution: From Post-War Substitute to Market Leader

The genesis of vinyl cladding in the late 1950s was a response to the limitations of aluminum and wood. Aluminum dented and conducted electricity; wood required perpetual painting and was prone to rot. Early PVC iterations were flawed—colors faded rapidly, and cold temperatures rendered the panels as brittle as glass. However, the 1970s saw the introduction of co-extrusion technology, which allowed manufacturers to layer two different types of PVC: a weather-resistant “capstock” and a high-strength “substrate.”

By the 1990s, the industry had standardized the inclusion of impact modifiers and UV inhibitors, making vinyl a viable long-term solution. The 2026 market represents the apex of this evolution, where “dark color” technology uses reflective pigments to prevent solar heat gain from warping deep hues. This historical trajectory illustrates a move from a cheap “cover-up” material to a respected component of modern high-performance building envelopes.

Conceptual Frameworks: The Dynamics of PVC

To master the application of vinyl, three specific mental models are required:

• The Floating System Model: View the siding not as a fixed skin, but as a series of interlocking plates that must move independently of the house frame. Any attachment that restricts this movement is a failure point.

• The Vapor Diffusion Balance: Because vinyl is non-porous, it can trap moisture coming from inside the house if the WRB is not properly specified. The “system” must be evaluated based on its perm-rating.

• The Impact/Thermal Trade-off: Increasing the rigidity of a panel to prevent sagging often makes it more susceptible to cracking during freeze-thaw cycles. Finding the “sweet spot” in polymer density is the goal of premium manufacturing.

Material Taxonomies: Thickness, Chemistry, and Profile

Different architectural needs require specific variations of the PVC polymer. The following table delineates the trade-offs between the primary categories.

Category	Typical Gauge (Inches)	Primary Benefit	Structural Limitation
Standard Grade	.040 – .042	Lowest initial cost; lightweight.	High propensity for “oil-canning” (warping).
Premium Grade	.044 – .048	Greater rigidity; better wind resistance.	Heavier; requires more robust fastening.
Insulated (EPS)	.046+ (with foam)	Eliminates thermal bridging; high impact resistance.	Increases wall thickness; requires custom trim.
Polymer Shakes	.060 – .100	Authentic wood aesthetic; extremely durable.	Higher cost; more complex expansion joints.

Realistic Decision Logic

The choice between these categories is often dictated by the “Span Rating.” If the home has long, unbroken walls, premium grade or insulated siding is necessary to prevent the visual “waviness” that plagues thinner materials. Conversely, for a rental property in a temperate climate, standard grade remains the most efficient allocation of capital.

Real-World Execution Scenarios and Failure Analysis Vinyl Siding Overview

Scenario 1: The “Tight-Nail” Disaster

A contractor, accustomed to installing wood siding, drives nails flush against the vinyl hem.

• Failure: During the first summer, the siding expands but has no room to move. It buckles away from the wall, creating “bubbles” in the facade.

• Correction: Nails must be driven into the center of the slot, leaving a 1/32-inch gap (the thickness of a dime) between the nail head and the siding.

Scenario 2: Dark Pigment in High-Altitude UV

A homeowner selects a dark charcoal vinyl for a mountain home at 7,000 feet.

• Constraint: Extreme UV exposure and high temperature fluctuations.

• Decision Point: Standard PVC will “chalk” and fade. The project requires an acrylic-capped or high-reflectivity pigment panel to maintain color integrity.

Scenario 3: The Unvented Overhang

Vinyl soffit is installed over old wood soffits without cutting vent holes.

• Second-order effect: Attic heat is trapped, and moisture from the wood rots the rafters behind the “maintenance-free” vinyl.

• Prevention: The structural overview must include a verification of intake ventilation before the cosmetic layer is applied.

Economics of the Envelope: Cost and Resource Dynamics

The financial appeal of vinyl is often found in its low labor intensity. However, a professional budget must account for “ancillary waste”—the 10-15% of material lost to cuts and overlaps.

Expense Type	Estimated Cost (per 100 sq. ft.)	Variability Drivers
Raw Material	$150 – $400	Gauge, color depth, and insulation.
Labor (Professional)	$200 – $500	Complexity of the house shape (corners/dormers).
Trim & Accessories	$50 – $150	Use of custom-bent aluminum vs. stock J-channel.
Removal/Disposal	$50 – $100	Local landfill fees and presence of lead paint.

Opportunity Cost: Choosing vinyl over fiber cement saves approximately 40% in upfront costs. If that capital is reinvested into high-performance windows or attic insulation, the net energy performance of the home may be higher than if a more expensive “prestige” siding was chosen.

Support Systems: Tools and Infrastructure Vinyl Siding Overview

A successful vinyl installation is a specialized trade requiring a specific “tool-stack”:

1. Snips and Miter Saws: Utilizing fine-tooth blades (often installed backward) to prevent shattering in cold weather.

2. Zip Tool (Unlocking Tool): Essential for “opening” a wall to inspect for leaks without destroying the panels.

3. Snap-Lock Punch: Creates “lugs” in the top edge of a panel so it stays in the utility trim without nails.

4. Brake (Metal Folder): Used to custom-bend aluminum coil for window casings; the quality of the “brake-work” defines the luxury-level of a vinyl job.

5. Laser Levels: Critical for ensuring the “starter strip” is perfectly level; if the first row is off by 1/8 inch, the error will be several inches by the time it reaches the roofline.

Risk Taxonomy: Compounding Failures in Synthetic Cladding

The risks associated with vinyl are rarely isolated; they compound.

• Type A: The Thermal-Mechanical Failure. Poor nailing leads to buckling, which causes the “lock” to disengage, which allows wind to get behind the panel and rip it off the wall.

• Type B: The Moisture Trap. Using a non-permeable house wrap behind vinyl. Vapor from the shower or kitchen cannot escape, condenses on the back of the vinyl, and drips into the rim joist.

• Type C: The Fire-Spread Risk. While PVC is self-extinguishing, it melts at low temperatures. If a barbecue grill is placed too close, the siding melts, exposing the flammable wood sheathing beneath.

Governance, Maintenance, and Long-Term Adaptation

Vinyl is “low maintenance,” not “no maintenance.” A property governance plan should include:

The 12-Month Audit

• Visual Check: Inspect for “chatter” or loose panels after windstorms.

• Drainage Check: Ensure the “weep holes” at the bottom of the panels are not clogged with dirt or insects.

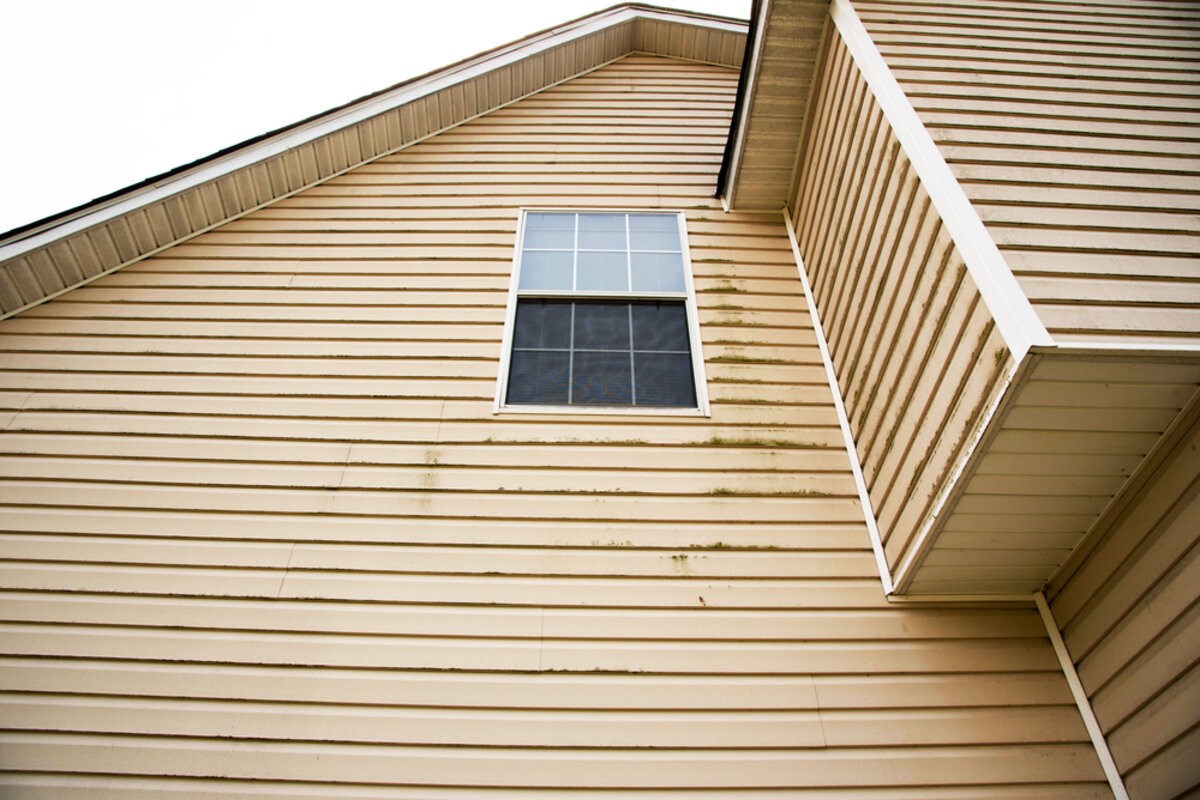

• Organic Growth: Use a soft-bristle brush and a 3:1 water-to-vinegar solution to remove algae on the north-facing side. Avoid high-pressure power washing, which can force water behind the panels.

Measurement, Tracking, and Evaluation

How do you evaluate the “health” of a vinyl siding system over twenty years?

1. Color Spectrometry (Qualitative): Comparing the color under a trim piece (unexposed) to the main wall to track fade rates.

2. Fastener Slip Test: Attempting to slide a panel horizontally. If it doesn’t move 1/2 inch, it is “pinned” and at risk of buckling.

3. Blower Door Test (Quantitative): While siding isn’t an air barrier, a well-installed insulated vinyl system should show a measurable decrease in air infiltration compared to bare sheathing.

Common Misconceptions and Oversimplifications

• Myth: “Vinyl siding lowers home value.” Correction: High-quality, properly trimmed vinyl provides a consistent ROI (Return on Investment) in the 65-75% range, often outperforming wood in mid-market neighborhoods.

• Myth: “It’s a fire hazard.” Correction: PVC has a high ignition temperature ($450°C$) and is naturally flame-retardant. It is less of a fire risk than natural cedar.

• Myth: “All vinyl looks like plastic.” Correction: Contemporary “milled” profiles and variegated color technology make modern vinyl indistinguishable from wood at a distance of ten feet.

• Myth: “You can’t paint vinyl.” Correction: With “vinyl-safe” paint containing urethane and acrylic resins, you can change the color of vinyl, provided the new color is not significantly darker than the original.

Conclusion

The role of vinyl in American architecture is one of pragmatic resilience. As we have explored in this vinyl siding overview, the material’s success is not found in its ability to replicate wood perfectly, but in its ability to protect a structure while requiring minimal human intervention. To choose vinyl is to accept a specific set of physical laws—chiefly the necessity of movement. When these laws are respected through precision fastening and robust drainage planning, vinyl ceases to be a “cheap substitute” and becomes a high-performance skin capable of sheltering a home for a generation. The future of the material lies in this intersection of chemical durability and intelligent, adaptable installation.
